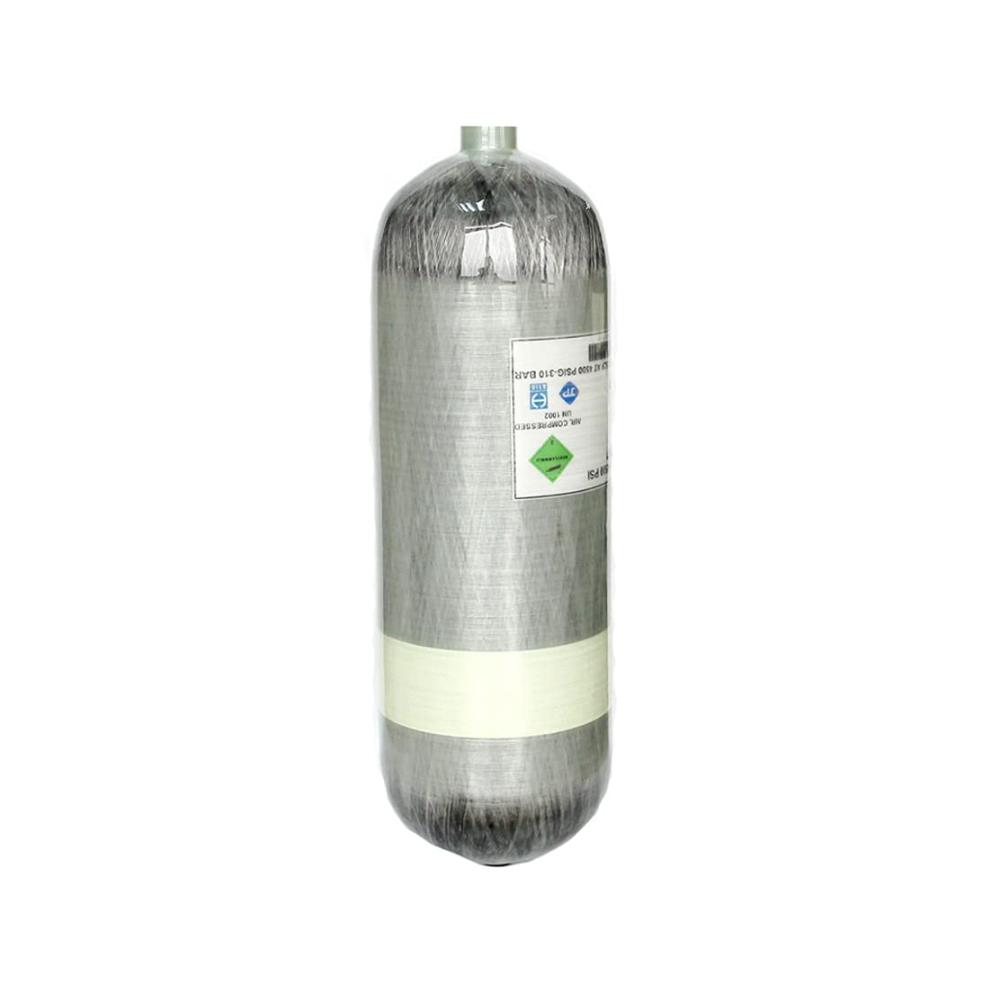

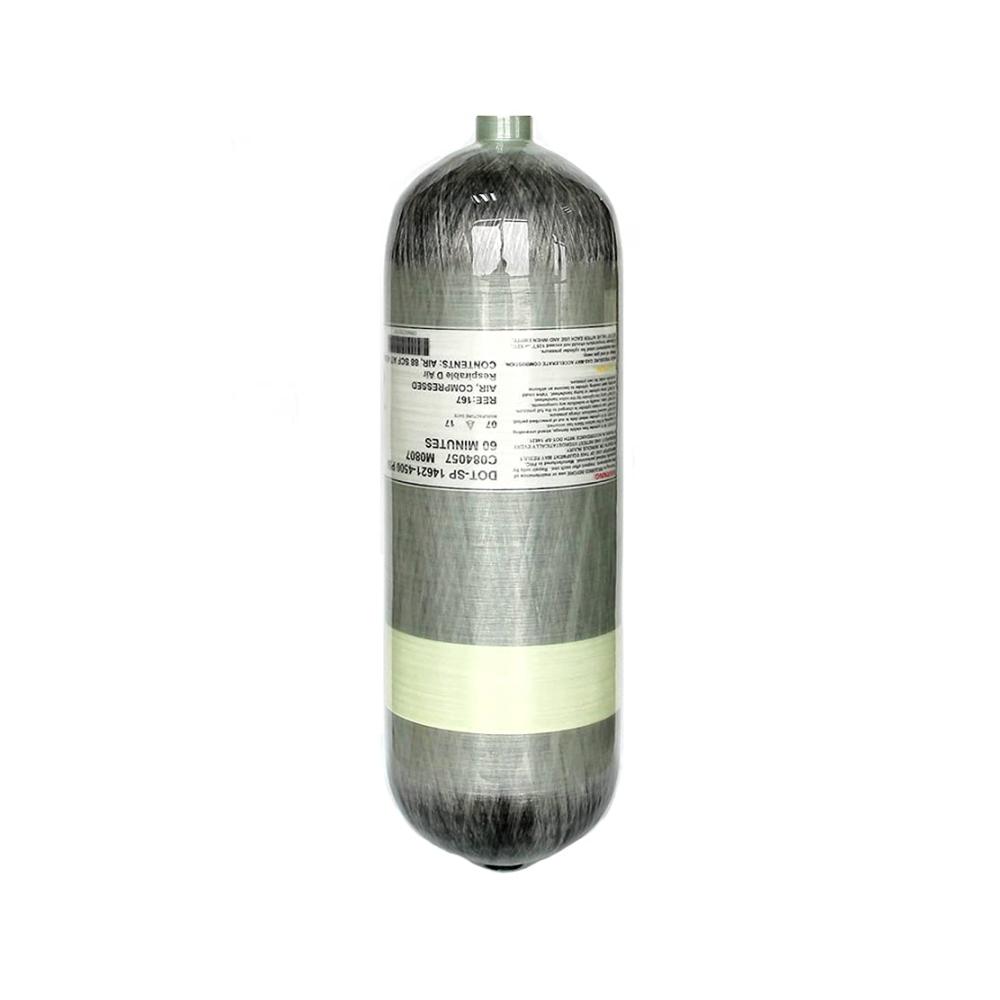

4500psi PCP Carbonfaser-Tank DOT-zertifiziert | 98 cu.ft Lufttank mit Dual-Manometer-Ventil für Druckluftsysteme – Hochkapazitätsbehälter für PCP-Gewehre und Luftgewehre
515,14 €
1000 vorrätig
Brand : IORMAN
Item Weight : 5.5 Kilograms
Capacity : 9 Liters
Color : Air Tank With Dual Gauge Valve
Material : carbon fiber
GURLLEU Gas cylinders – GURLLEU produces portable gas cylinders through advanced technology. Compared with conventional respirators, we use aluminium or aluminium composite cylinders instead of steel ones, with weight reduction of 40%-70%, so they are more preferable for people with breathing problems.

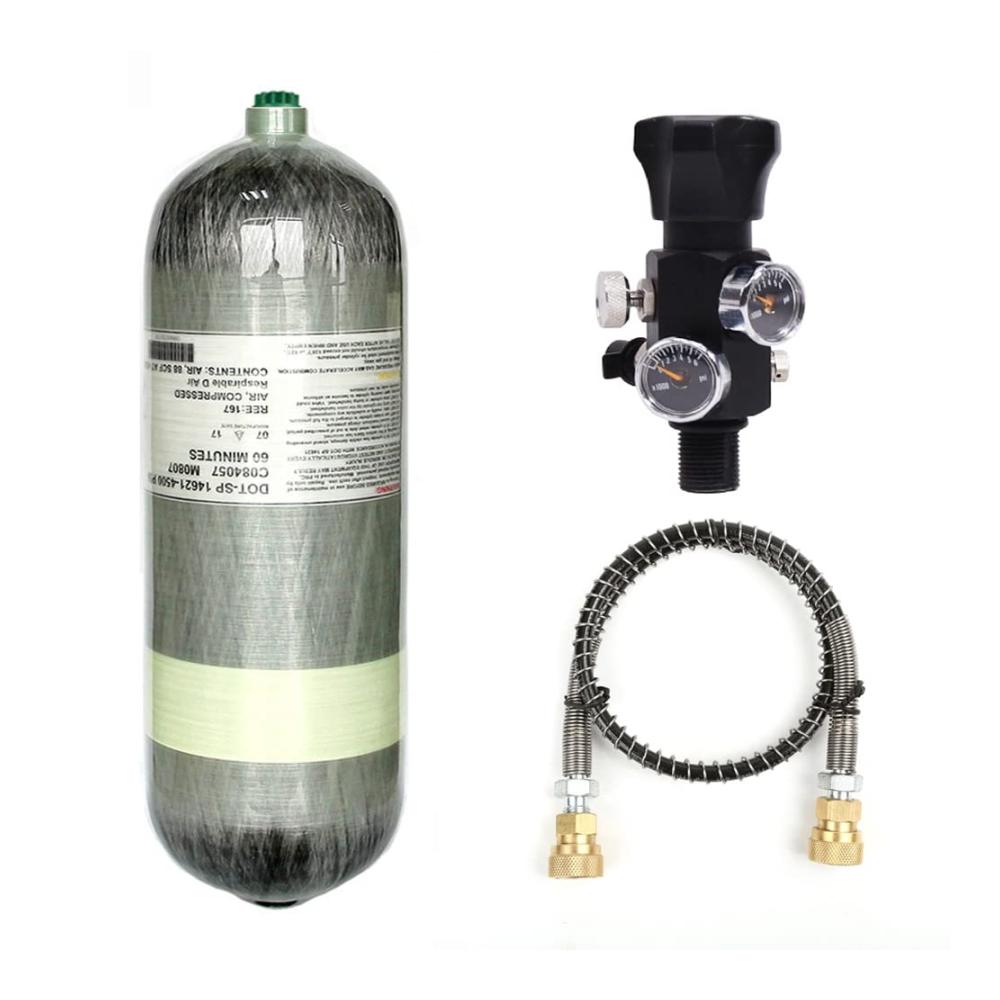

Charging System Set
– 9 liter / 88 cubic feet capacity cylinder
– Integrated valve gauge for input / output
– High pressure filling hose with Foster quick disconnect
Fill Station Assembly
Easy to installation and operation
Bottle Neck
Standard 7/8-14 UNF ( 0.875-14 UNF ) thread size

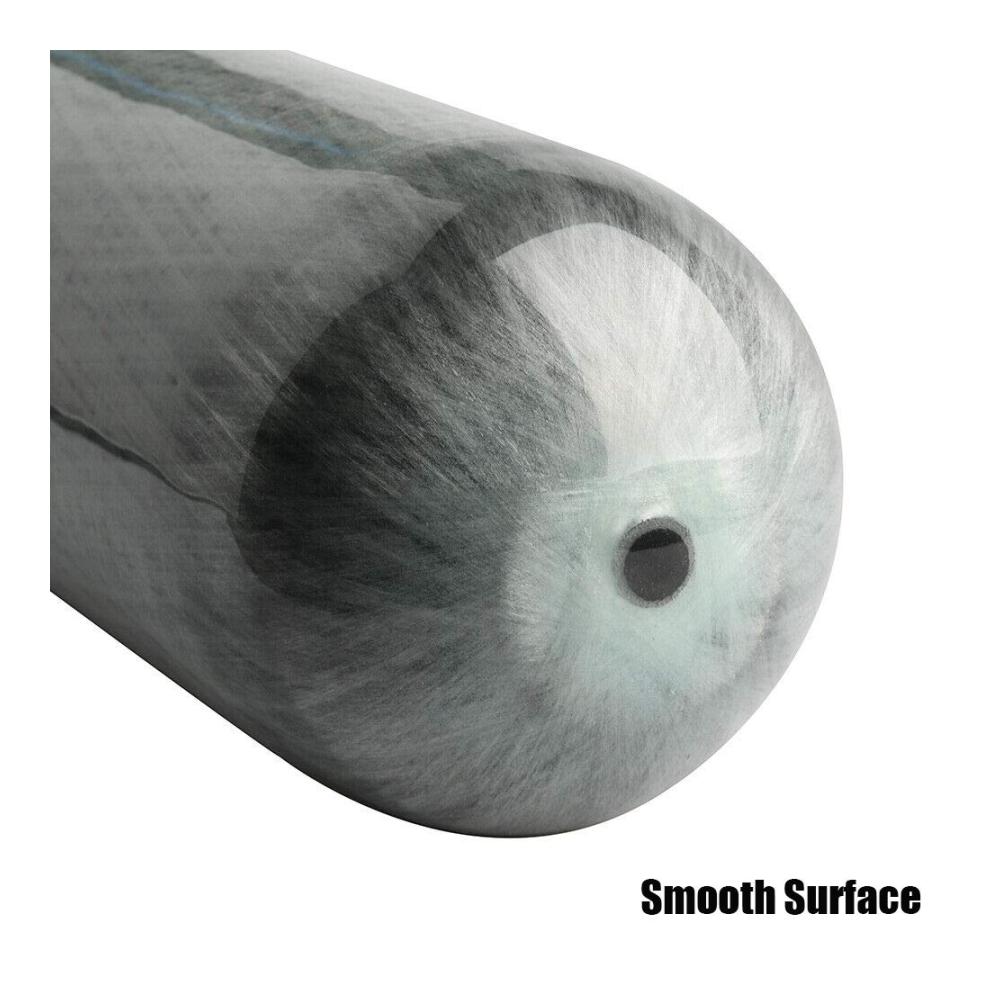

Bottle Surface
Smooth outer surface
Charging System Set
Fill Station Assembly
Bottle Neck
Bottle Surface
Production Specifications
| | | |
|---|---|---|---|
Pressure Service– Working Pressure: 30 Mpa / 4500 PSI – Water Testing Pressure: 50 Mpa / 7500 PSI – Burst Testing Pressure: 102 Mpa / 15300 PSI | Cylinder Structure– Featured Imported AL-6061 lining – Seamless design of filament winding – Full-wrapped of carbon fiber and glass fiber – Outside Diameter: 176mm / 6.9 inch, Length: 562mm / 22.1 inch | Valve Structure– High pressure gas cylinder valve in line with standard. – Exquisite workmanship – Military quality, safe and reliable | Standard– DOT-SP-14621 standards |

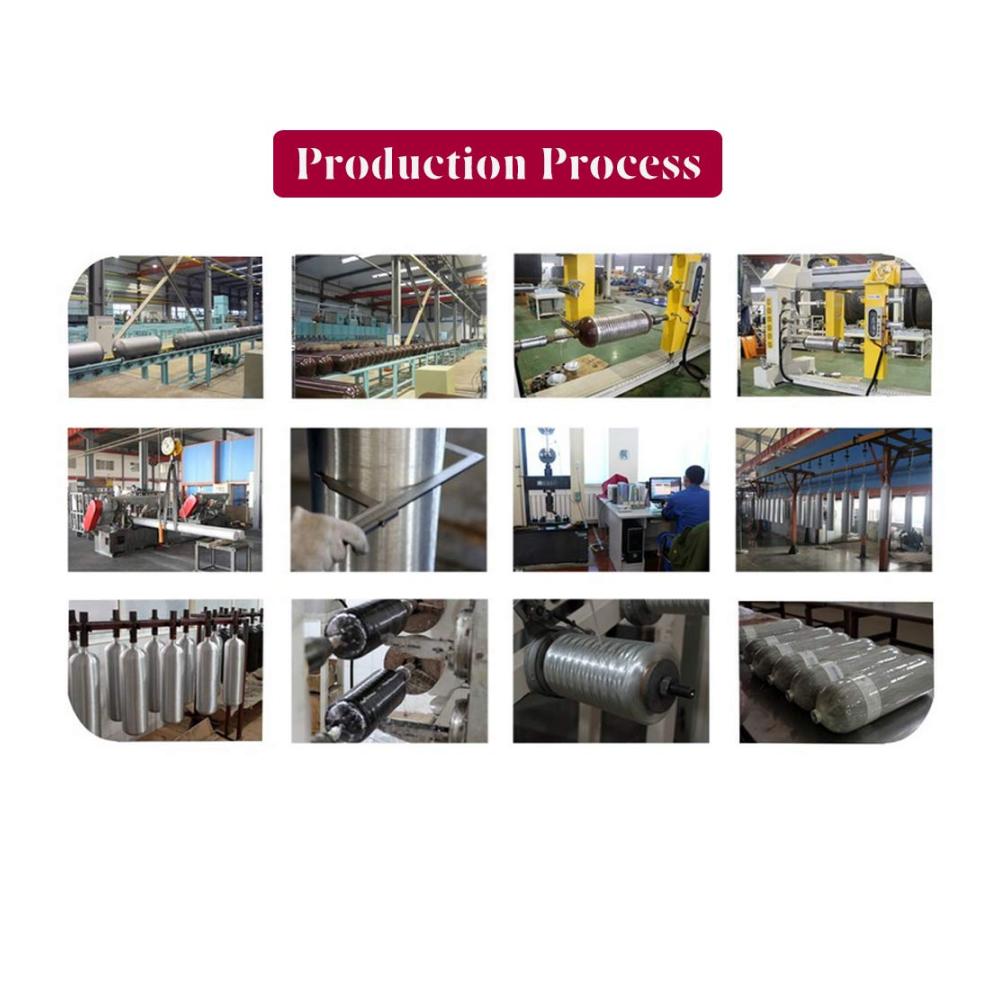

Production Process
Advanced normative cyclic production
Standard production process cycle o ensure product quality and safety
Main Uses
Application
– It can be used in Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency.
– Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy.
1:28 Click to play video
GURLLEU Carbon Fiber CylinderIORMAN Product guides and documentsCertificate of Compliance (PDF)
|
|---|
Capacity: 9 Liters / 98 Cubic feet / 550 cubic inch carbon fiber cylinder.
Certificate: DOT-SP-14621 certified. Inspection cycle: 3-Year, Service life:15-Year.
Working pressure: 30mpa / 300bar / 4500psi standard. The bottle mouth: M18x1.5-6H input thread.

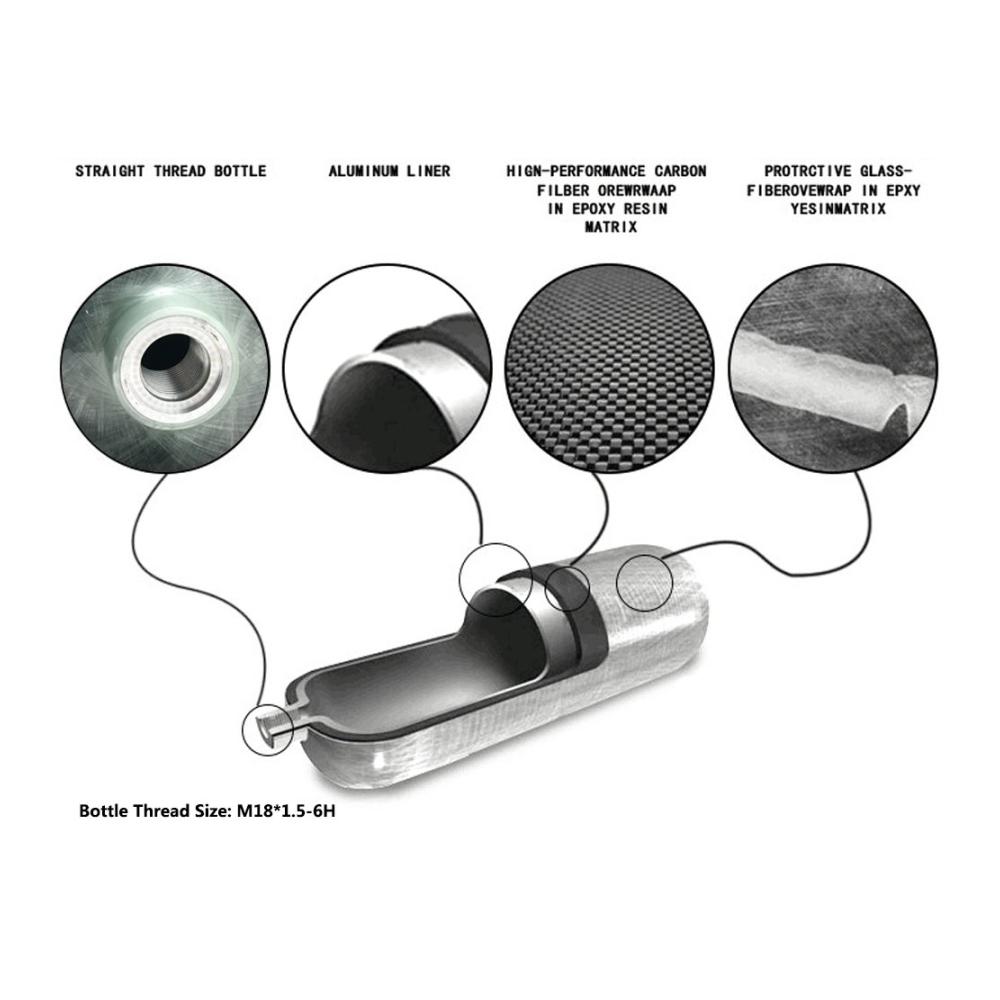

Material: Imported AL-6061 aluminum alloy liner, carbon fiber and glass fiber winding bottle body.
This is DOT composite carbon fiber air tank with regualtor guage valve refill system, it is also can be for PCP airgun, paintball co2 HPA, scuba diving, and etcs.
