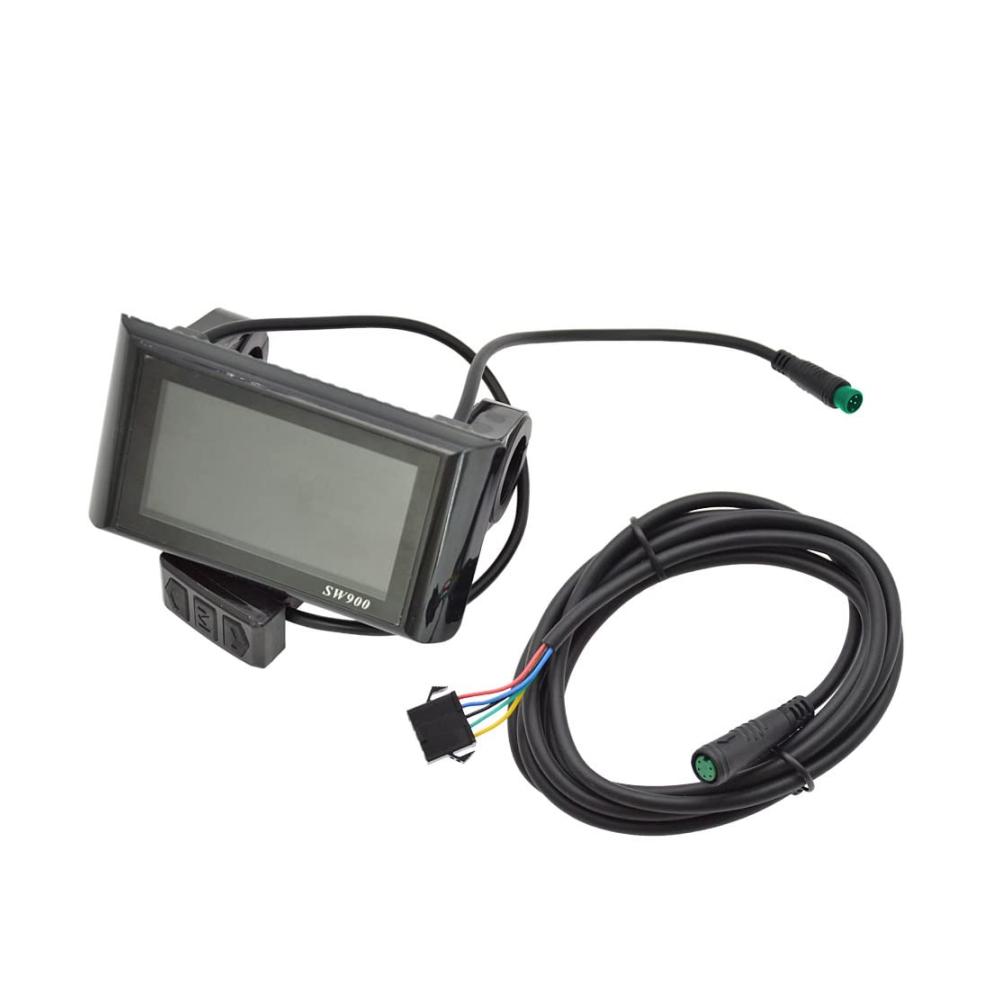

Wasserdichtes LCD-Display SW900 für Elektrofahrräder und -scooter 5-Pin Steuerpanel mit Anzeige für Geschwindigkeit und Batterie

Brand : ZLiT

Color : Black

Item Weight : 218 Grams

Screen Size : 0.86 Inches

Display Type : LCD

Product Description

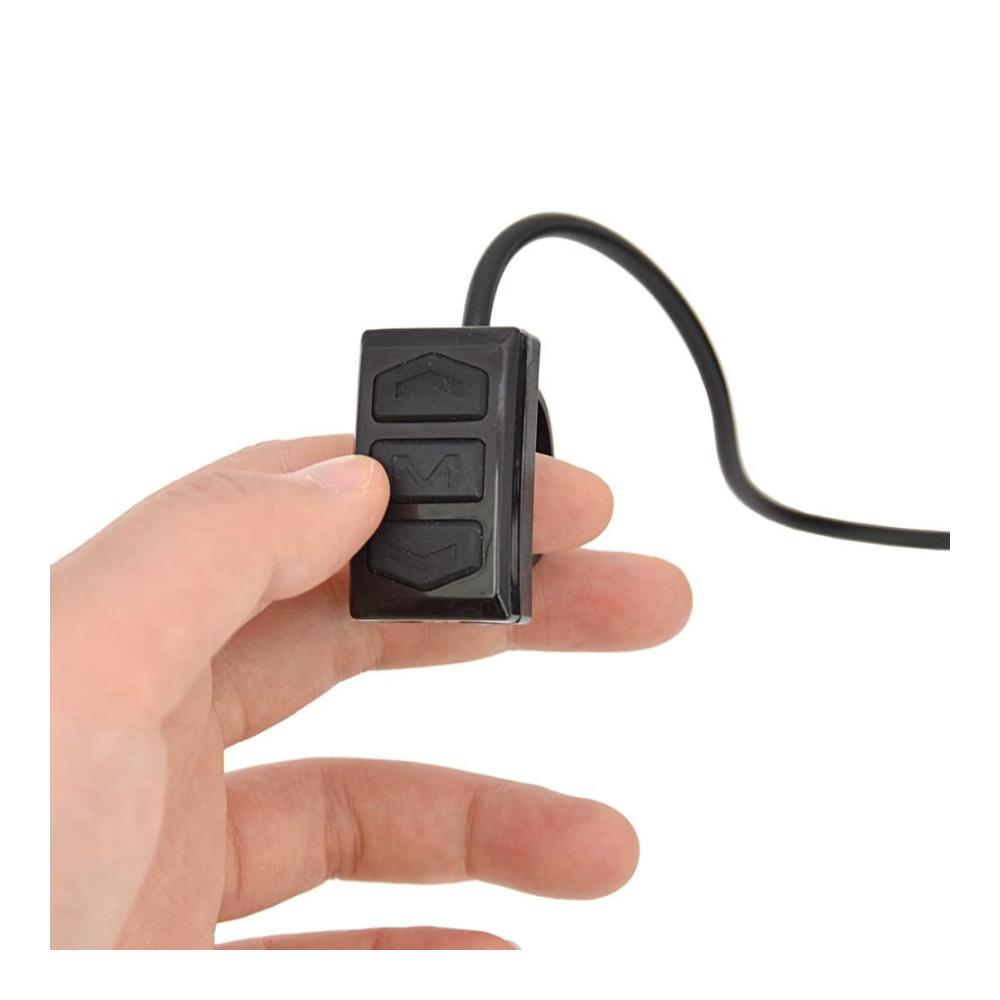

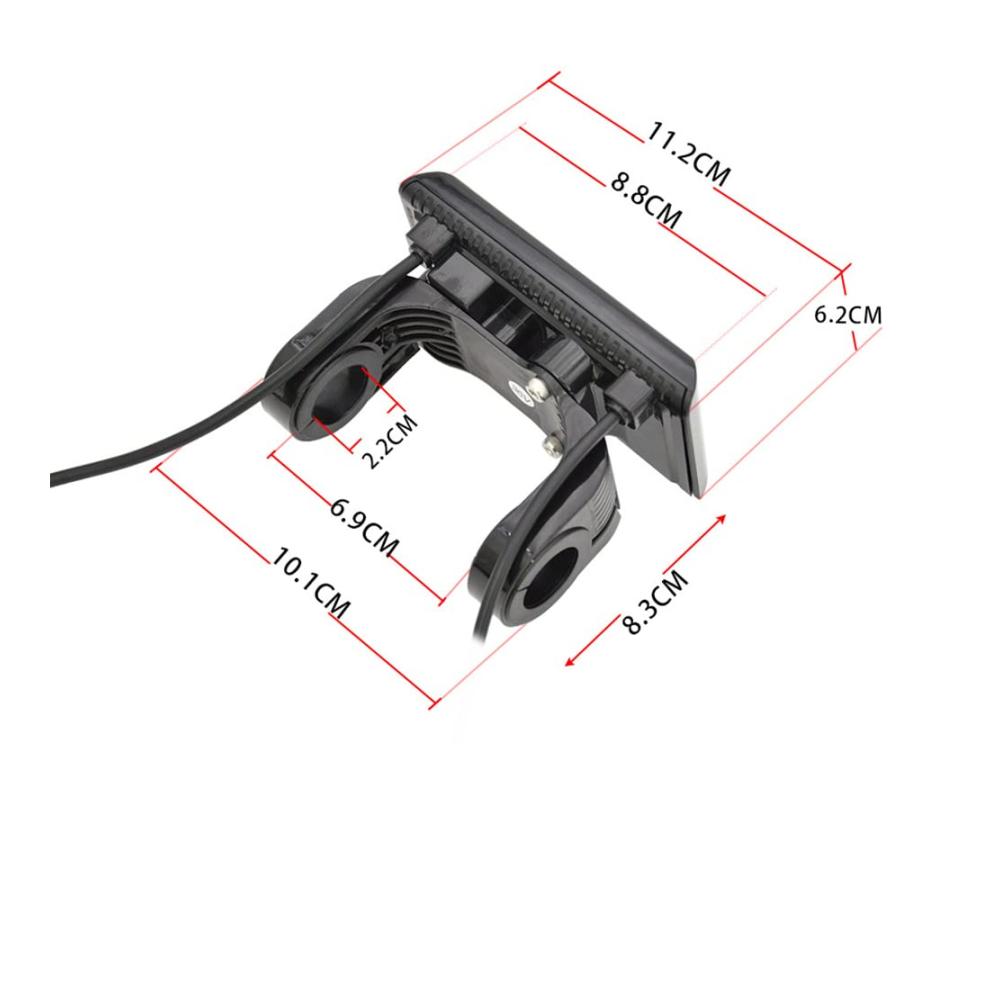

Features: 1.ABS shell is strong and durable, can be used normally in the temperature range of -20℃-60℃. 2. LCD color display, can clearly and intuitively display the vehicle driving process of various information. 3. Distribution of waterproof to SM link x line, waterproof controller and ordinary controller can be used, do not have to pick the controller instrument interface and trouble. Specifications: Product name: SW900 Colorful display Plug specifications: 5PIN Material: shell ABS LED LCD meter Applicable to voltage: 24V/36V/48V/60V Size: as shown in the picture Weight: 218g (excluding packaging and accessories) Voltage: 24V/36V/48V/52V/60V Red wire: positive pole of power supply Yellow line: Communication transmission (TX) Black wire: negative pole of power supply Green line: Communication reception (RX) Blue line: controller switch lock Package includes： 1*SW900 Colorful display Long press the up and down buttons on the instrument panel to enter instrument settings. P01: Backlight brightness, level 1 is the darkest and level 3 is the brightest. P02: Mileage unit, 0: KM; 1: MILE。 P03: Voltage level: 24V, 36V, 48V. P04: Sleep time: 0, no sleep; Other numbers refer to sleep time, ranging from 1 to 60; Unit minute. P05: PAS level: 0, Level 3 mode: Level 1 2V, Level 2 3V, Level 3 4V1, Level 5 mode: Level 1 2V, Level 2 2.5V, Level 3 3V, Level 4 3.5V, Level 5 4V. P06: Wheel diameter: unit, inch; Precision: 0.1. P07: Speed measurement magnetic steel number: Range: 1-100. P08: Speed limit. Range: 0-50km/h, with 50 indicating unlimited speed.

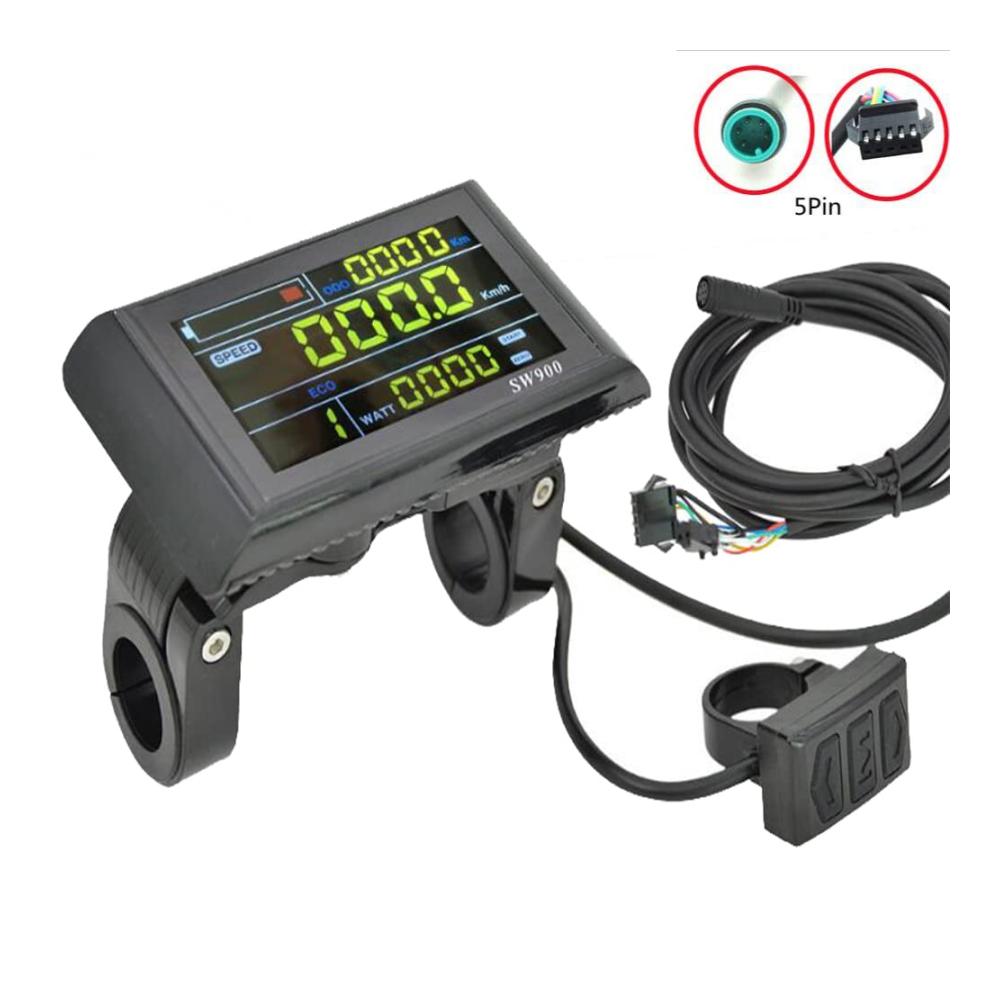

The 5Pin SW900 LCD display control panel is suitable for handles of 2.2cm/0.86 inches and is the perfect accessory for electric bicycles, scooters, and more.

Waterproof and Durable: Electric bicycle LCD display meter made of ABS shell, it is sturdy and wear-resistant, and can be used normally in temperatures ranging from minus 20 degrees to 60 degrees Celsius. It has good toughness and waterproof performance, and provides protection for internal circuits.

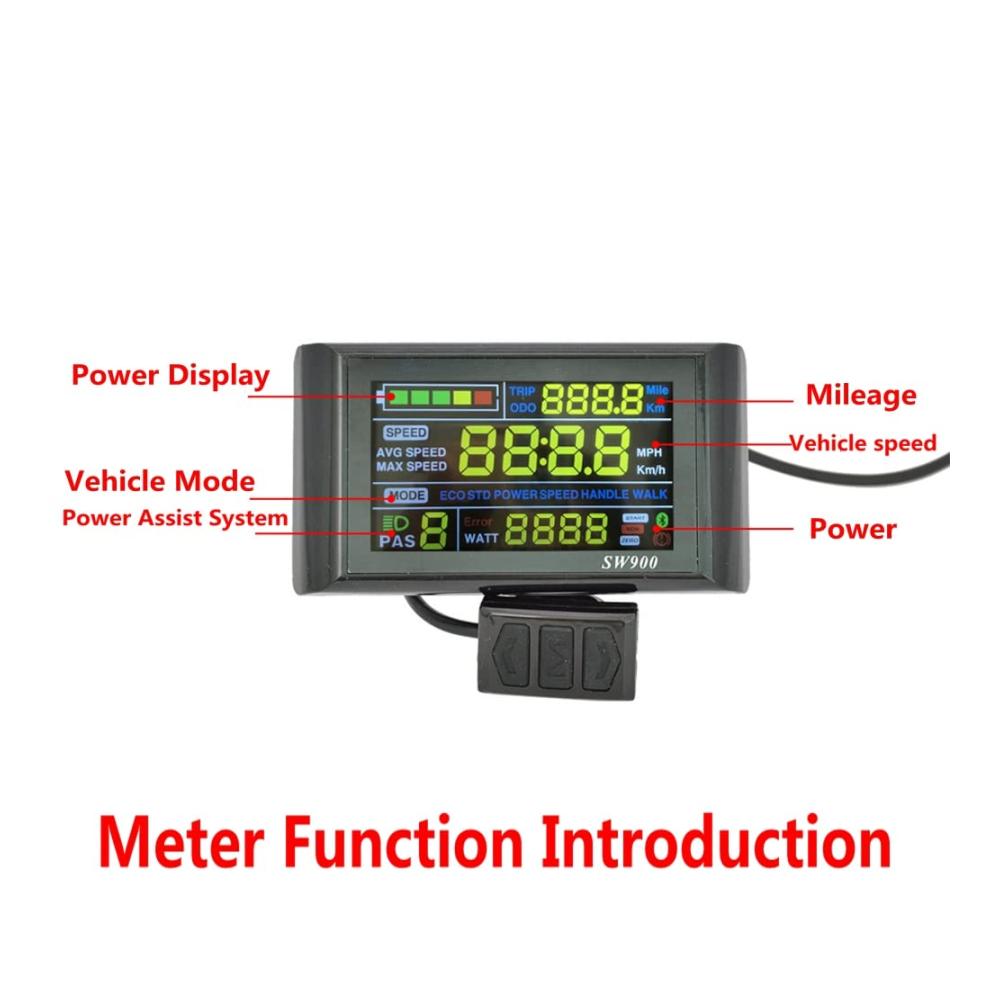

Real time data recording: Electric bike LCD display screen is convenient to view the data on the panel, reflecting the battery usage, vehicle mode, mileage, vehicle speed, power, and power assist system. Real time power consumption is recorded to ensure cycling mileage.

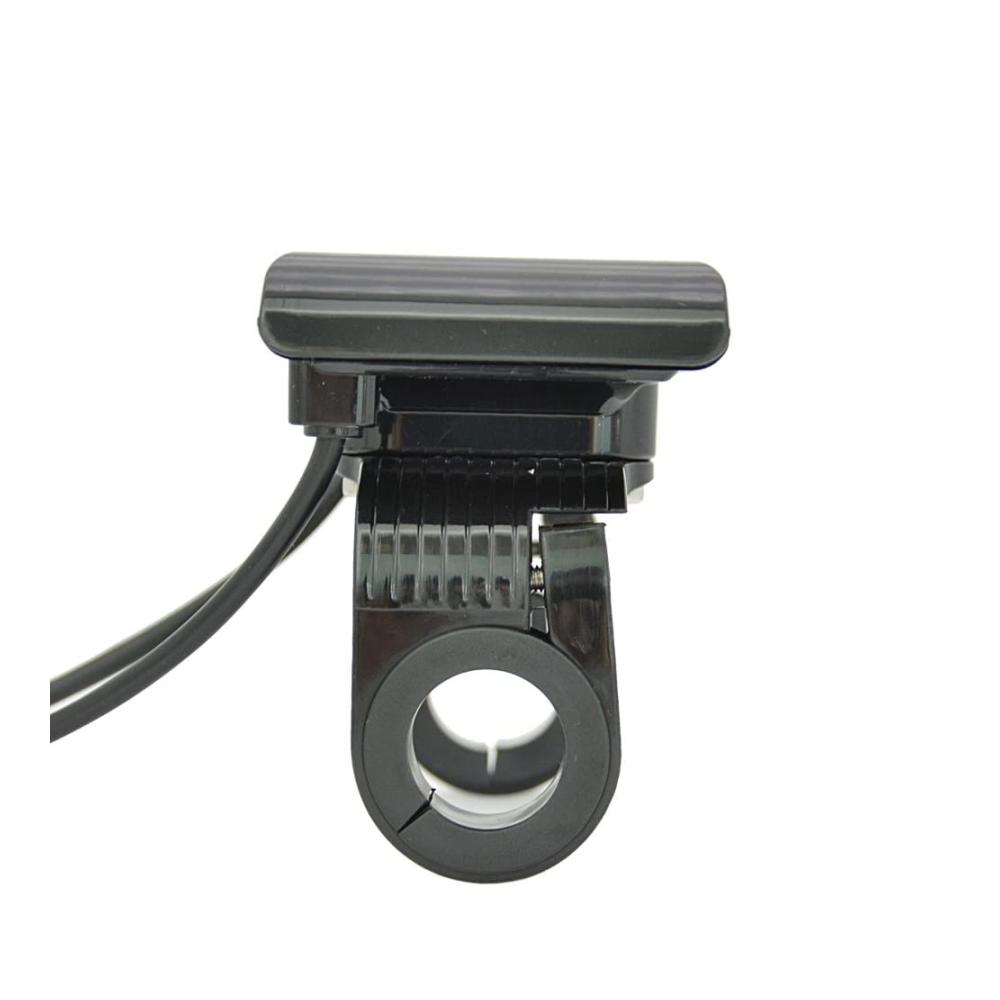

Easy installation: Quick and easy installation and disassembly, without the need for tools.

High temperature resistant wiring, waterproof head, simple docking operation, and durability. Safer to use.
